The Details

DESCRIPTION

Bring movies, TV, music, and games to life in 7.1.2 Dolby Atmos and DTS:X sound with our SDA-optimized, 11-speaker sound bar, Wi-Fi and Bluetooth streaming, and wireless surrounds and subwoofer

  • 3D Audio with Dolby Atmos & DTS:X
  • VoiceAdjust™ & SDA technology
  • Bluetooth & WiFi with Google Chromecast, Apple Airplay & Spotify Connect
  • 11 driver array
  • 10" wireless subwoofer & two wireless surrounds
  • 45" x 2.8" x 4.6" (Bar)
SPECIFICATIONS
Total Pieces

4

Remote

Deluxe Remote

Remote Type

Infrared (IR)

Included Accessories


(1) High-speed HDMI cable

(1) Deluxe Remote

(2) AAA Batteries

(2) Sound Bar wall mounting brackets (screws and fasteners not included)

(1) Sound bar wall mount template

(1) Wireless Surround Speaker Wall Mounting Template

(1) Sound bar power cord

(1) Subwoofer power cord

(2) Wireless surround speaker power adapters

(1) Quick Start Guide

(1) Registration card

Original Purchaser Only

Yes

Electronics Warranty

1 year

Drivers Warranty

3 years

Carton 1 (H x W x D)

22.4 x 48 x 14.1 in
56.9 x 121.8 x 35.8 cm

Sound Bar - Quantity Included

1

Sound Bar - Dimensions (H x W x D)

4.6 in x 45 in x 2.8 in
118 mm x 1143 mm x 72 mm

Sound Bar - Weight

12.85 lb (5.83 kg)

Driver Complement - Left/Right Channels

(4) 1 x 3 in (25 x 76 mm) racetrack mid-woofer drivers
(2) 0.75 in (19 mm) soft dome tweeters

Driver Complement - Center Channel

(2) 1 x 2.5 in (25 x 64 mm) racetrack mid-woofer drivers
(1) 0.75 in (19 mm) soft dome tweeter

Driver Complement - Left/Right Height Channels

(2) 2.5 in (64 mm) full-range drivers

Bluetooth

Bluetooth 5.0

Wireless

Yes

Wireless Protocol

Wi-Fi (802.11 a/n/ac 2.4 GHz & 5 GHz)

Wi-Fi Streaming Platforms

Apple AirPlay 2, Google Chromecast for Audio, Spotify Connect

Works with Alexa

Yes

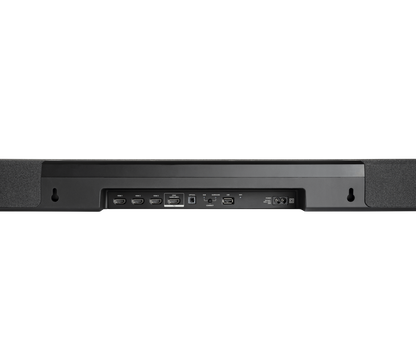

Inputs/Outputs


(3) HDMI 4K (60Hz)

(1) HDMI eARC 4K (60Hz)

Toslink Optical

USB (for firmware updates)

Video Pass-through

4K HDMI

HDR

Dolby Vision

Ethernet

No

Mounting Type

Flush-Mount Wall Bracket

Available Orientations

Horizontal

Wireless Subwoofer - Quantity Included

1

Subwoofer - Dimensions (H x W x D)

16 in x 11.9 in x 15.7 in
407 mm x 302 mm x 399 mm

Subwoofer - Weight

26.3 lb (11.9 kg)

Subwoofer Array Driver Enclosure Type

Downfiring, Ported

Subwoofer Array Driver Complement

(1) 10 in (25.4 cm) Round Woofer

Wireless Surround Speakers - Quantity Included

2

Orientation

Horizontal

Rear Array Driver Complement

Right: (1) 3in (73mm) full-range driver
Left: (1) 3in (73mm) full-range driver

Mounting Type

1/4 in (6.35 mm) - 20 Threaded Insert and Keyhole Hanger

Supported Audio Formats


PCM

Dolby Mono

Dolby Digital

Dolby Digital Plus

Dolby Atmos

Dolby Atmos True HD

DTS Digital Surround

DTS-HD

DTS-HD Master Audio

DTS:X

DTS Virtual X
