The Details

DESCRIPTION

Flush-mount speakers with crystal-clear audio. Ideal for clutter-free rooms. Buy now and enjoy premium acoustics!

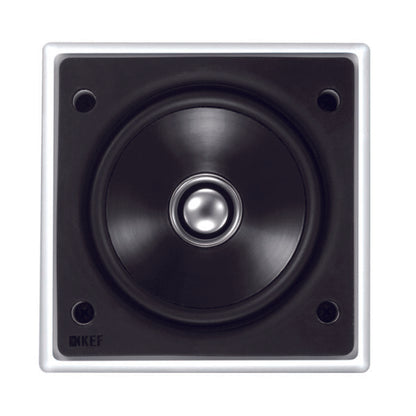

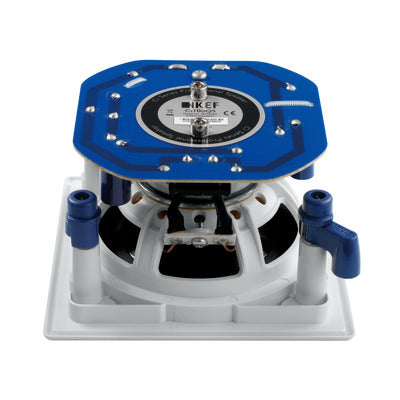

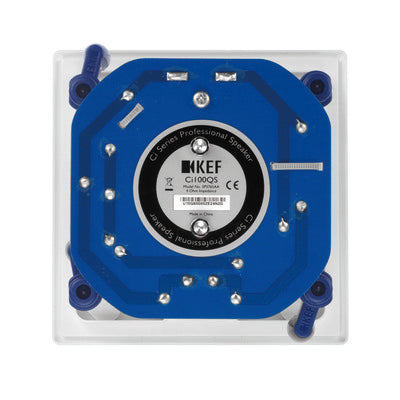

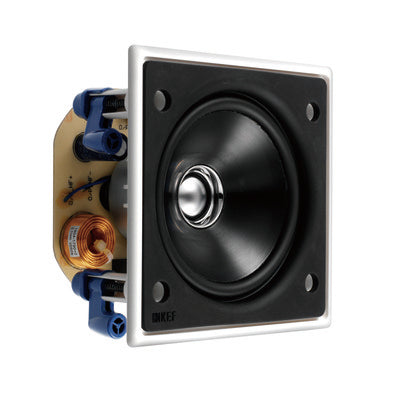

High-End In-Wall Speaker

  • Fast installation without damage to wall or ceiling
  • “Tangerine” waveguide technology
  • Exceptionally wide dispersion characteristics
  • Excellent driver protection
  • KEF Uni-Q “Sit Anywhere” technology

Manufactured country : UK

SPECIFICATIONS
Nominal Impedance

4 Ohms

Sensitivity

88dB (2.83V/1m)

Frequency Response (±6dB)

80Hz – 27kHz (2pi / open-backed)

Crossover Frequencies

3kHz

Drive Units

LF: 100mm (4in.)
HF: 19mm (0.75in.)

Recommended Amplifier Power

10 – 50W

External Dimensions (H x W x D)

127 x 127 x 76 mm (5.0 x 5.0 x 2.99 in.)

Cut-out Dimensions (H x W)

112 x 112 mm (4.41 x 4.41 in.)

Ceiling Thickness (Max)

24mm (0.95 in.)

Ceiling Thickness (Min)

6mm (0.24 in.)

Mounting Depth From Surface

Without back can: 72mm (2.83 in.)

Optional Rough In Frame

RIF100S

Optional Rear Enclosure

RNC100S

Net Weight

0.67kg (1.48lbs.)

Unit Measurement

Piece

Downloads


User Manual
Information Sheet
Architectural Speaker Brochure
Product Group Spec. Shee
Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Selection And Setup Guid
Architectural Speaker Accessory Guide

Remarks


KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
