DESCRIPTION

Compact size, studio-quality audio. Ideal for home theaters. Free expert support – buy yours today!

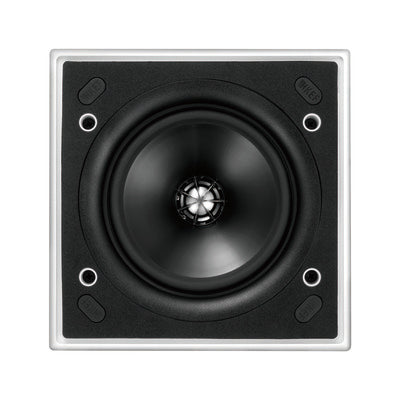

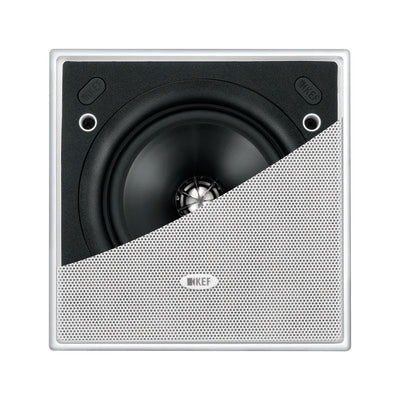

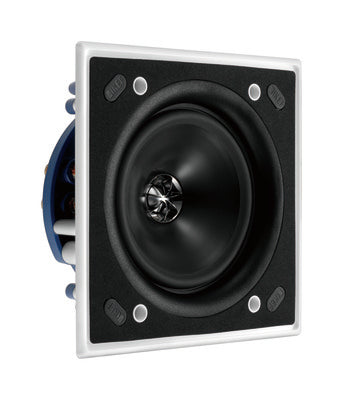

Stylish Square in-wall Custom Install Speaker

  •       Aluminum dome tweeter and ‘tangerine’ waveguide
  •       Magnetic grille
  •       Paintable grille and bezel
  •       Uni-Q driver array
  •       Weather Resistant

Manufactured country : UK

SPECIFICATIONS
Nominal Impedance

8 Ohm

Sensitivity

87dB (2.83V/ 1m)

Crossover Frequencies

3.8kHz

Frequency Response

45Hz - 34kHz (±6dB) open backed

Drive Units

LF: 130mm (5.25in.)
HF: 19mm (0.75in.) Uni-Q

Recommended Amplifier Power

10 - 100W

Product External Dimensions (H x W x D)

184 x 184 x 84 mm (7.24 x 7.24 x 3.26 in.)

Cut-Out Dimensions (H x W)

158 x 158 mm (6.22 x 6.22 in.)

Ceiling Thickness (Maximum)

24mm (0.95 in.)

Ceiling Thickness (Minimum)

6mm (0.24 in.)

Mounting Depth From Surface

77.9mm (3.07in.)

Optional Rough In Frame

RIF130S

Optional Rear Enclosure

RNC130S

Net Weight

1.4kg (3.1lbs.)

Unit Measurement

Piece
