The Details

DESCRIPTION

Premium sound with Uni-Q tech. Ideal for high-end installations. Buy today and enjoy free shipping!

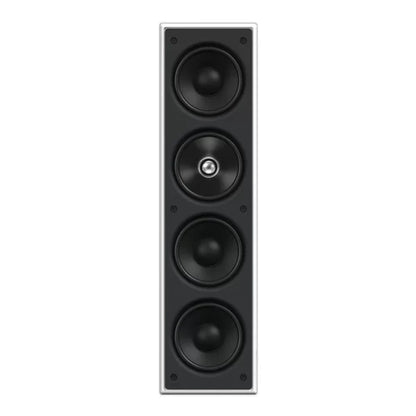

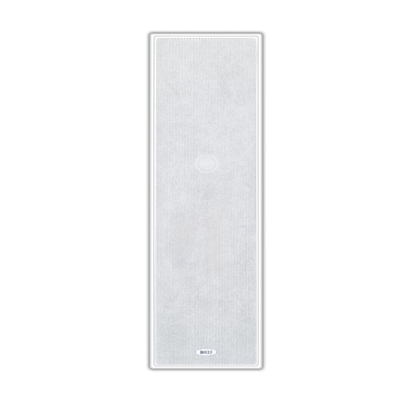

Exceptionally Stylish In-Wall Custom Install Speaker

  • Certified in-wall speaker
  • Professional studio speakers
  • High output and imaging quality
  • Terrific sound performance
  • Appropriate frequency response

Manufactured country : UK

SPECIFICATIONS
Nominal Impedance

4 Ohm

Sensitivity

89dB (2.83V/ 1m)

Crossover Response

2.2kHz

Frequency Response

55Hz - 28kHz (±6dB) open backed

Drive Units


LF: 3 x 100mm (4 in.)
MF: 100mm (4 in.)
HF: 19mm (0.75 in.) Uni-Q

Recommended Amplifier Power

10 - 150W

Optional Rough In Frame

RIF4100L

Product External Dimension (H x W x D)

490 x 128 x 81 mm (19.29 x 5.04 x 3.19 in.)

Cut-Out Dimensions (H x W)

476 x 114mm (18.74 x 4.49 in.)

Wall Thickness (Maximum)

24mm (0.95 in.)

Wall Thickness (Minimum)

6mm (0.24 in.)

Mounting Depth From Surface

76mm (3.0 in.)

Net Weight

3 kg (6.61 lbs)

Unit Measurement

Piece

Downloads


Manual
Architectural Speaker Brochure
Product Group Spec. Sheet
Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Selection And Setup Guide
Architectural Speaker Accessory Guide
Extreme Home Theatre Info Sheet

Remarks


KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions.
