The Details

DESCRIPTION

Engineered for audiophiles. Ultra-thin, ultra-powerful. Buy today and enjoy our best price guarantee!

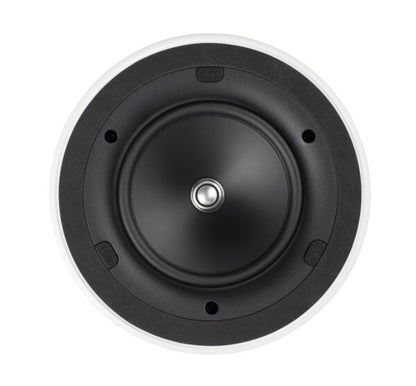

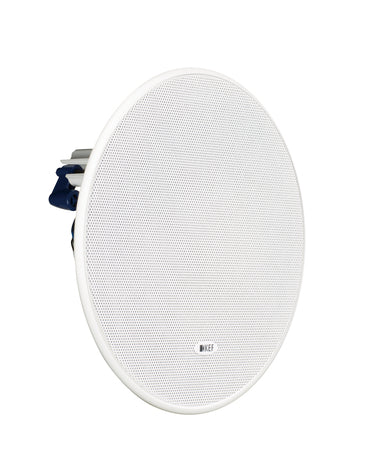

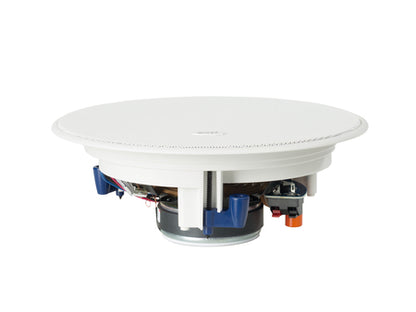

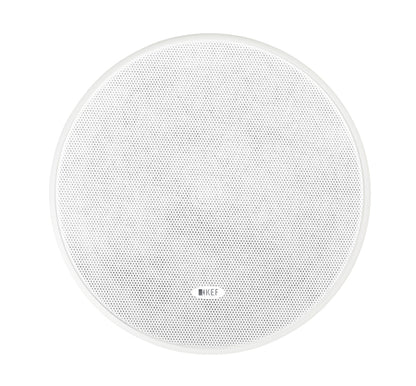

Ultra-Thin Custom Install Speaker

  • Ultra-thin bezel technology
  • Weather-resistant construction standards
  • UV-protected plastics
  • Quick and easy to install
  • Uni-Q driver technology

Manufactured country : UK

SPECIFICATIONS
Nominal Impedance

8 Ohms

Sensitivity

89dB (2.83V/ 1m)

Frequency Response

52Hz - 20kHz (±6dB) open-backed

Crossover Frequencies

2.8kHz

Drive Units

LF: 160mm (6.5in.)
HF: 16mm (0.6in.)

Recommended Amplifier Power

10 - 100W

Product External Dimensions

Diameter: 234.6mm (9.24in.)
Depth: 88.7mm (3.49in.)

Cut-Out Dimensions

Diameter: 196mm (7.71in.)

Ceiling Thickness (Maximum)

36mm (1.42 in.)

Ceiling Thickness (Minimum)

6mm (0.24 in.)

Mounting Depth From Surface

85.2mm (3.35in.)

Optional Rough In Frame

RIF160R

Optional Rear Enclosure

RNC160R

Net Weight

1.4kg (3.1lbs)

Unit Measurement

Piece

Document Download


Manual
Individual Information Spec. Sheet
Architectural Speaker Brochure
Product Group Spec. Sheet
Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Selection And Setup Guide
Architectural Speaker Accessory Guide
