Our Objective

To design and deliver a fully integrated luxury entertainment and smart-living
environment combining

Location: Dubai, UAE
Integrator: MKB Bespoke Audio
Project Type: Ultra-Luxury Residential Villa with Dedicated Home Cinema,
Multi-Room Audio, Smart Automation, Networking, CCTV, and Multipurpose
Entertainment Spaces.

Reference-grade private cinema
Whole-home audio distribution
Intelligent KNX automation
Enterprise-grade networking
Security surveillance
Multipurpose entertainment hall
Acoustic treatment and architectural integration

Facade Lighting

The client wanted a solution that
would:

Deliver a commercial cinema experience at home.
Maintain clean architectural aesthetics.
Provide seamless control of lighting, audio, video,
climate, and entertainment.
Support multiple entertainment zones simultaneously.
Ensure reliable network coverage throughout the villa.
Integrate all systems into a single user-friendly
platform.

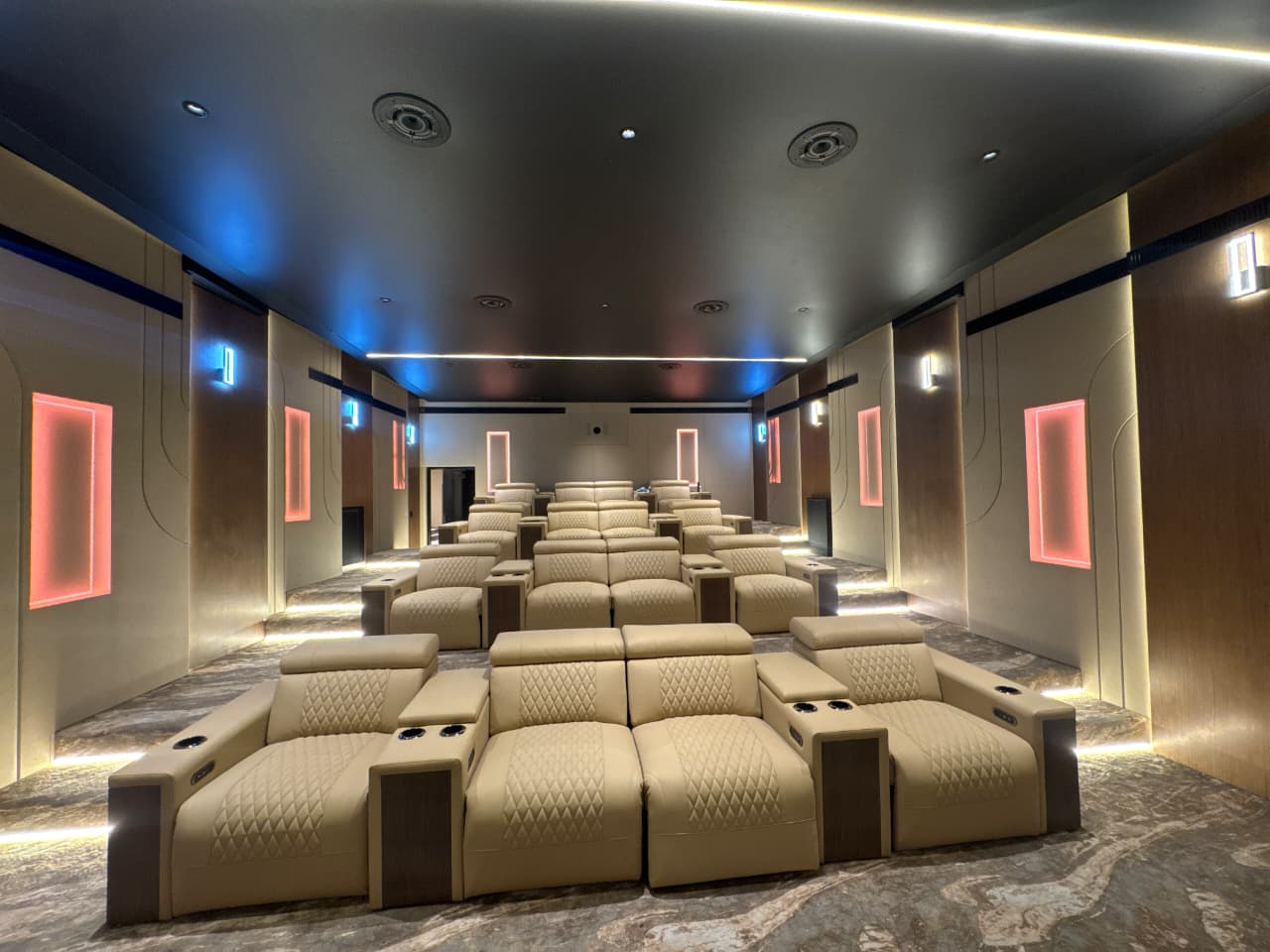

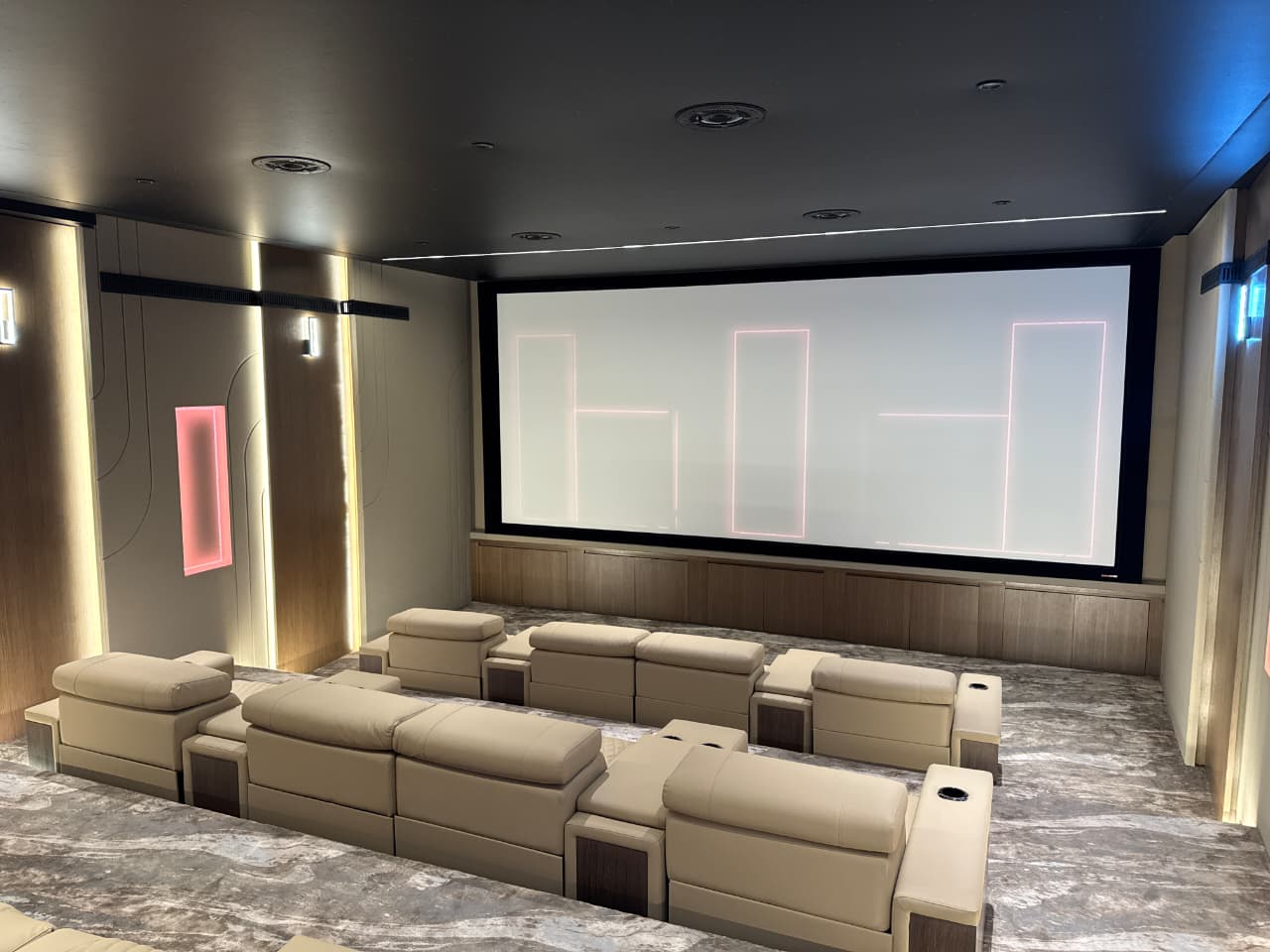

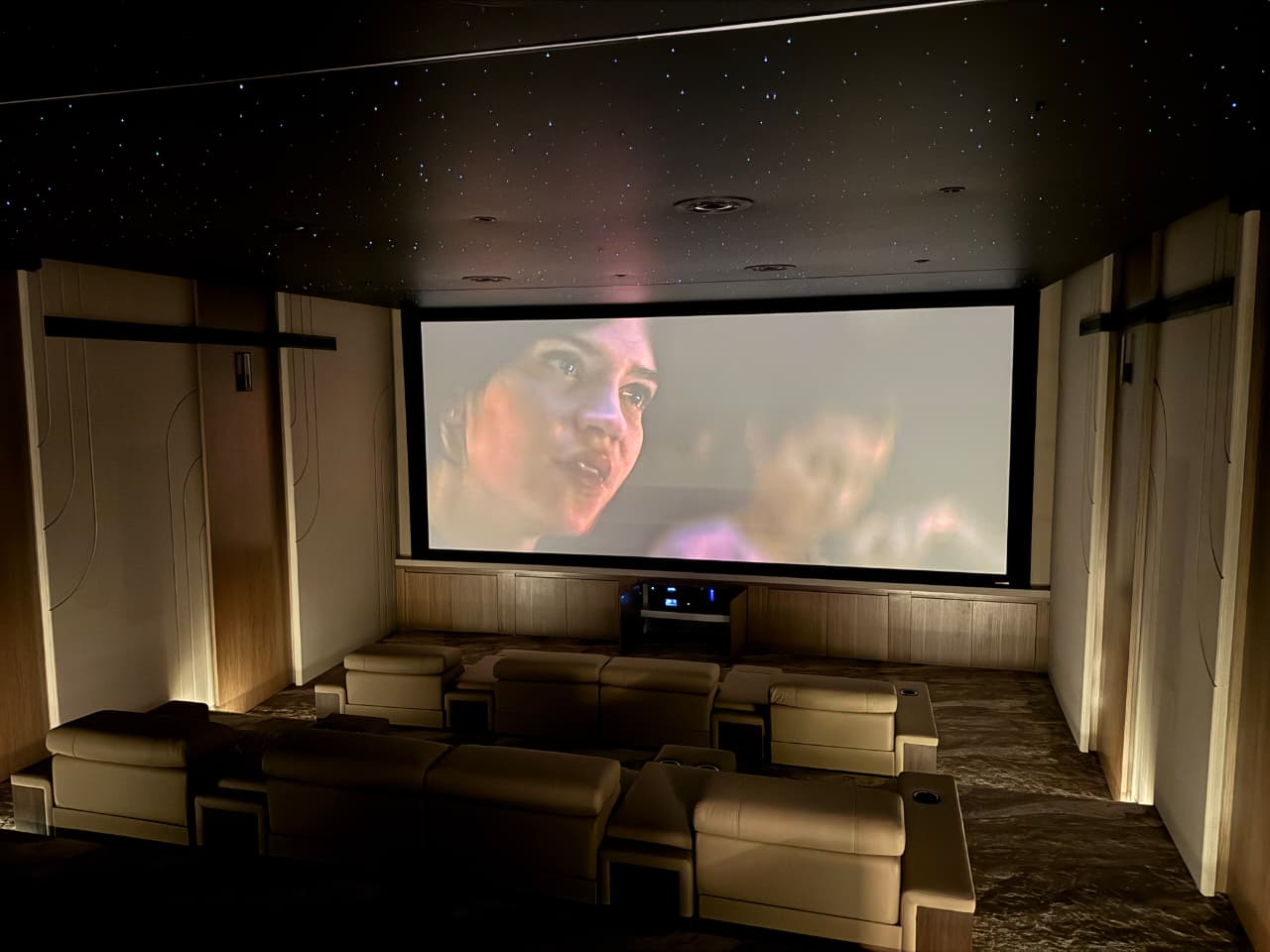

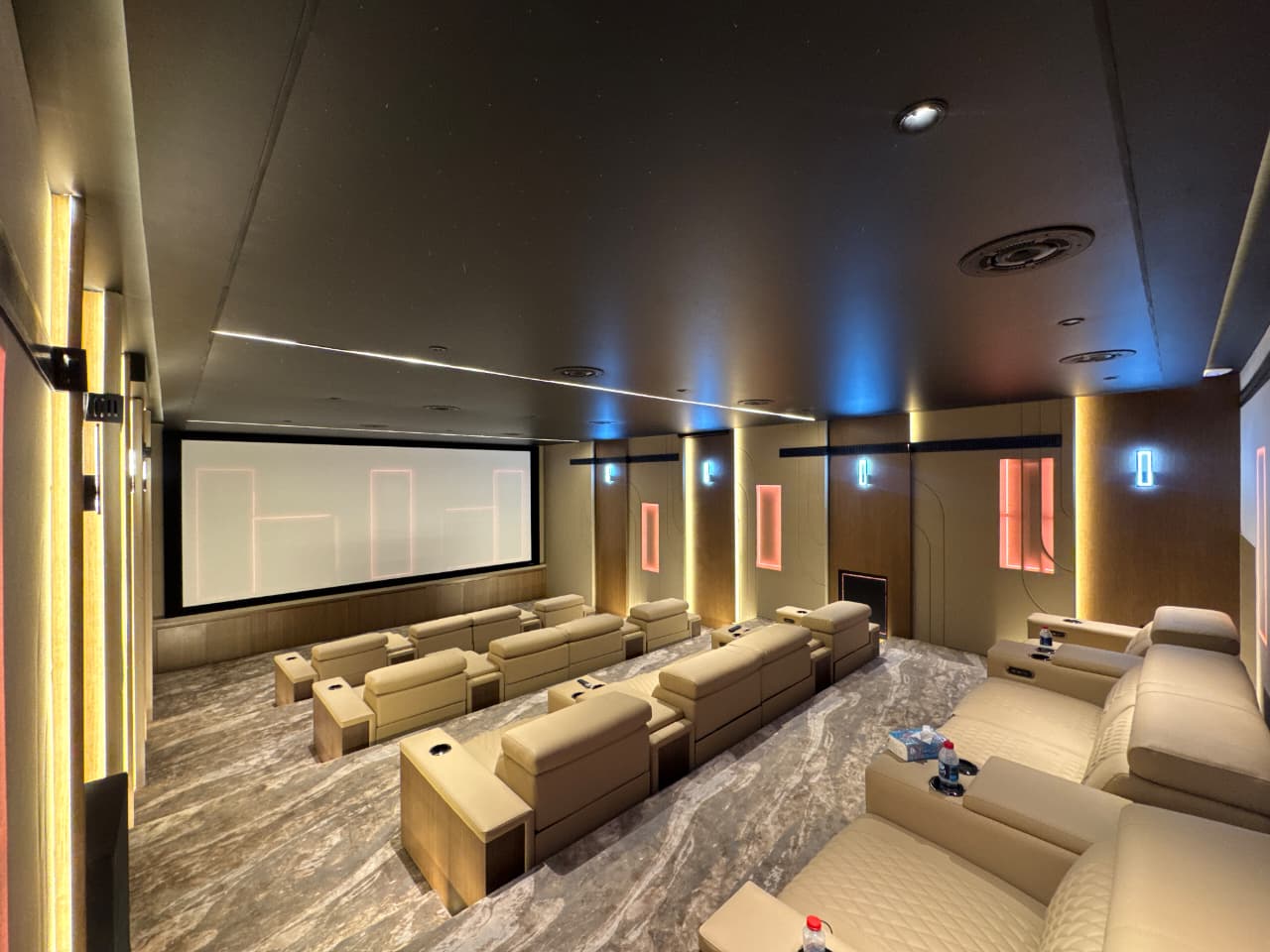

Reference Home Cinema

The cinema room was engineered as a
purpose-built immersive theater featuring:

Visual System

135-inch acoustically transparent Screen Research projection screen.
Sony GTZ380 native 4K laser projector delivering 10,000 lumens.
Sony VPLL-Z8014 professional projection lens.

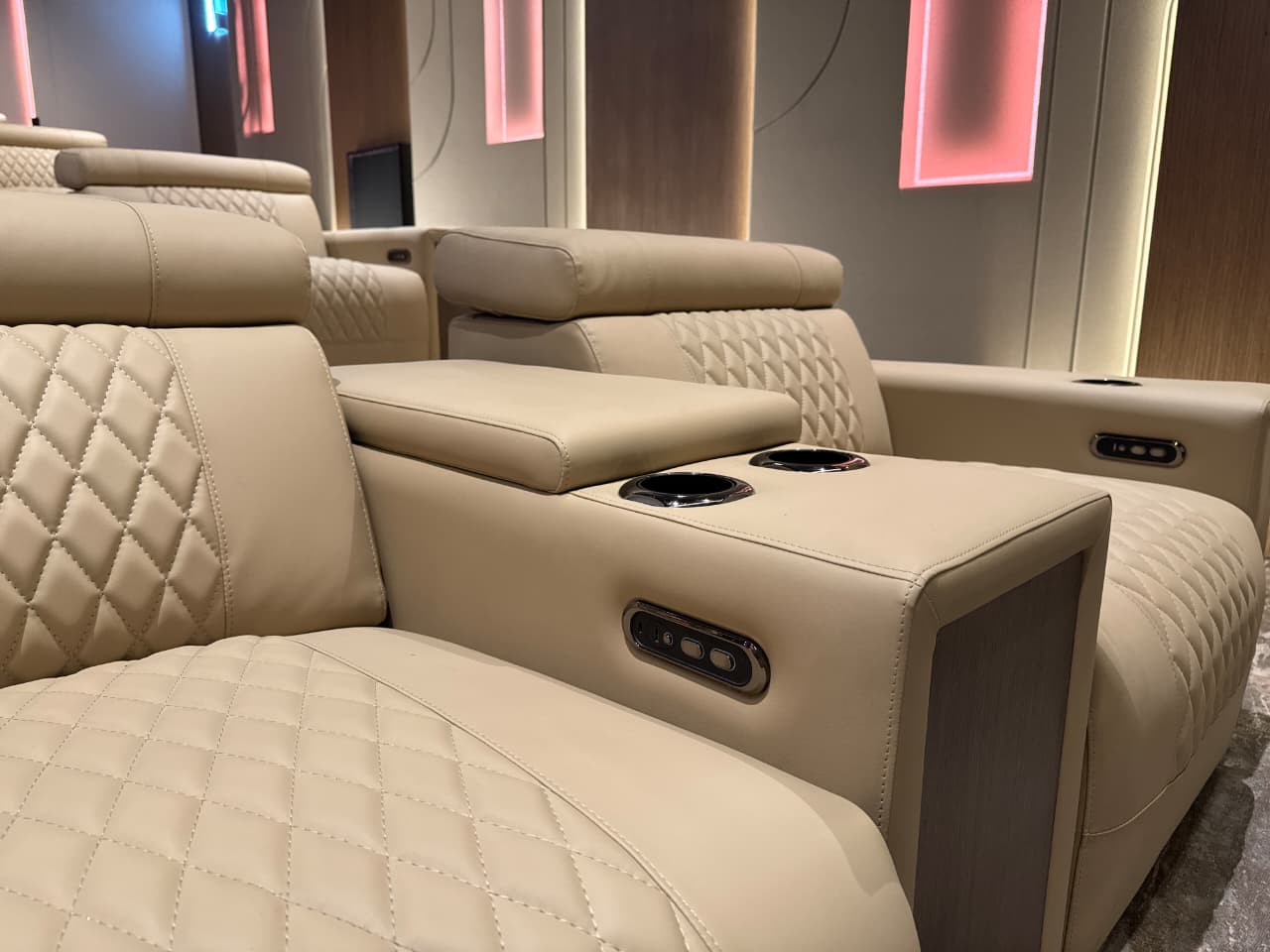

Seating

Four motorized luxury two-seater recliners.
Eight premium single-seater theater recliners with adjustable headrests and premium finishes.

Acoustic Design

200+ sqm of acoustic insulation.
Rockwool-based soundproofing system.
Fabric acoustic wall treatments.
Acoustic-rated cinema door.
Stretch ceiling system with integrated fiber-optic star ceiling.

Multi-Room Audio System

The villa required distributed audio across multiple lifestyle zones including corridors, jacuzzi area, common spaces, and entertainment zones.

Speaker Solution

KEF Ci200QR premium in-ceiling speakers.
KEF Ci110FCT architectural speakers.

Audio Distribution

VSSL A.6x six-zone streaming amplifier.
AirPlay 2
Chromecast
Spotify Connect
Alexa integration
Multi-room synchronized playback.

Result

The system delivered discreet architectural integration while maintaining uniform sound coverage throughout the property.

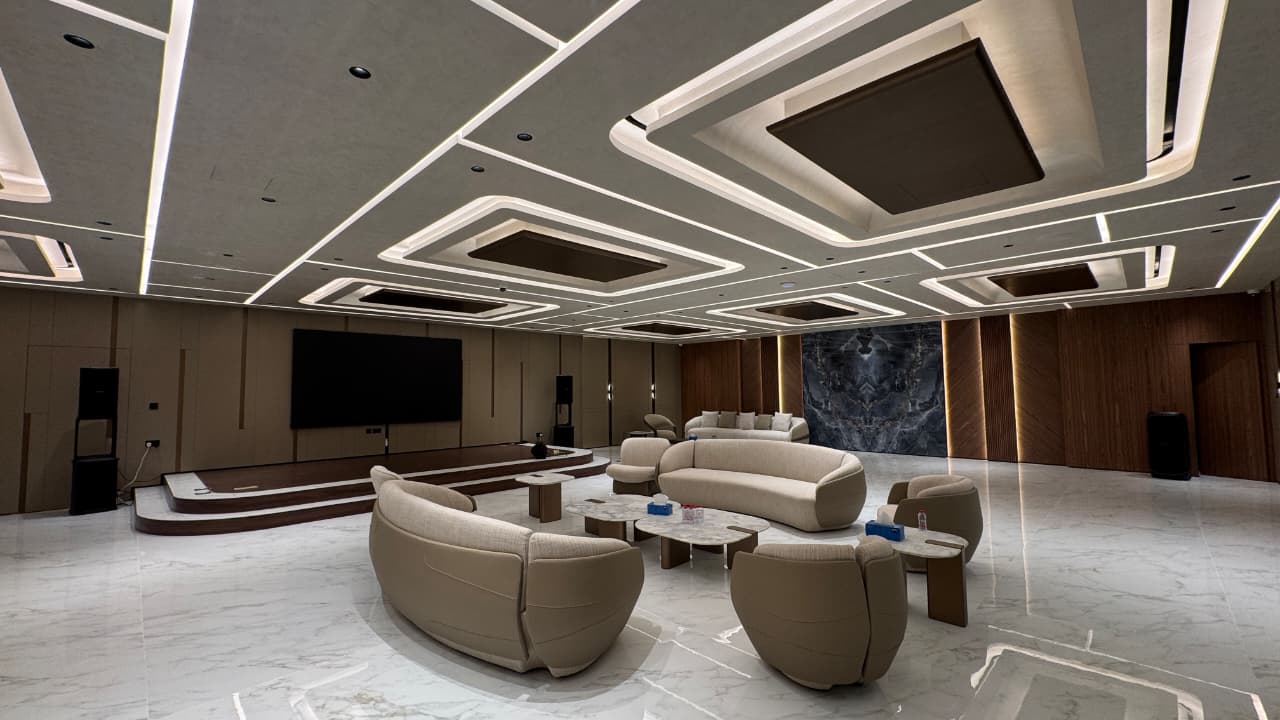

Multipurpose Hall

A dedicated entertainment and event
space was designed to accommodate:

Family gatherings
Presentations
Sports viewing
Social events

Audio Components

QSC K8.2 professional loudspeakers
QSC mounting systems
QSC KS212C cardioid subwoofers
Yamaha professional mixing console
DBX DriveRack PA2 DSP processor.

Benefits

High speech intelligibility
Deep controlled bass
Flexible event configurations
Professional-grade sound reinforcement

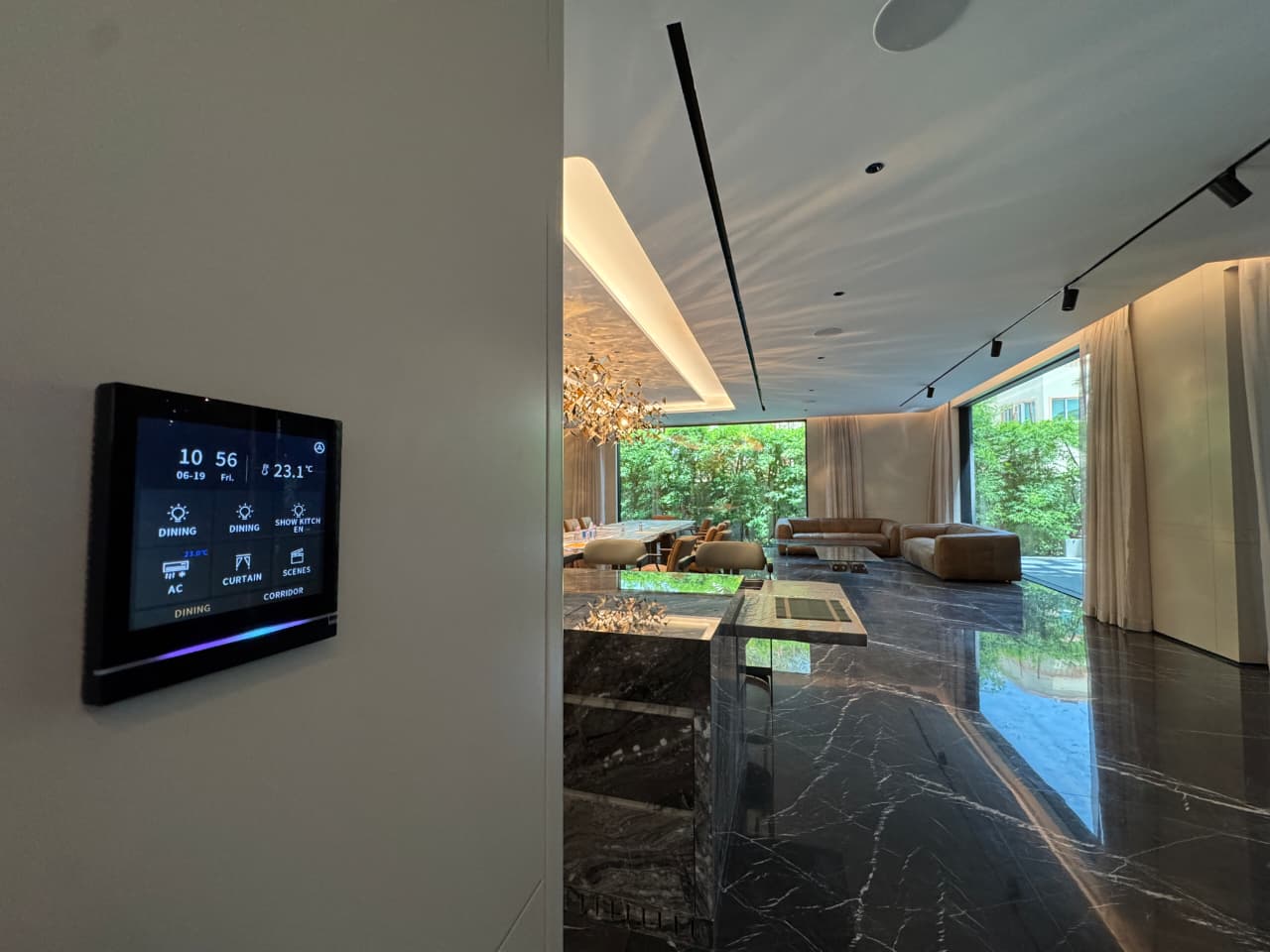

Smart Home Automation

A KNX-based automation ecosystem was
implemented throughout:

Features

Lighting control
DALI lighting integration
HVAC integration
Scene management
Occupancy sensing
Touchscreen control panels
Mobile app control
Intercom functionality.

Hardware

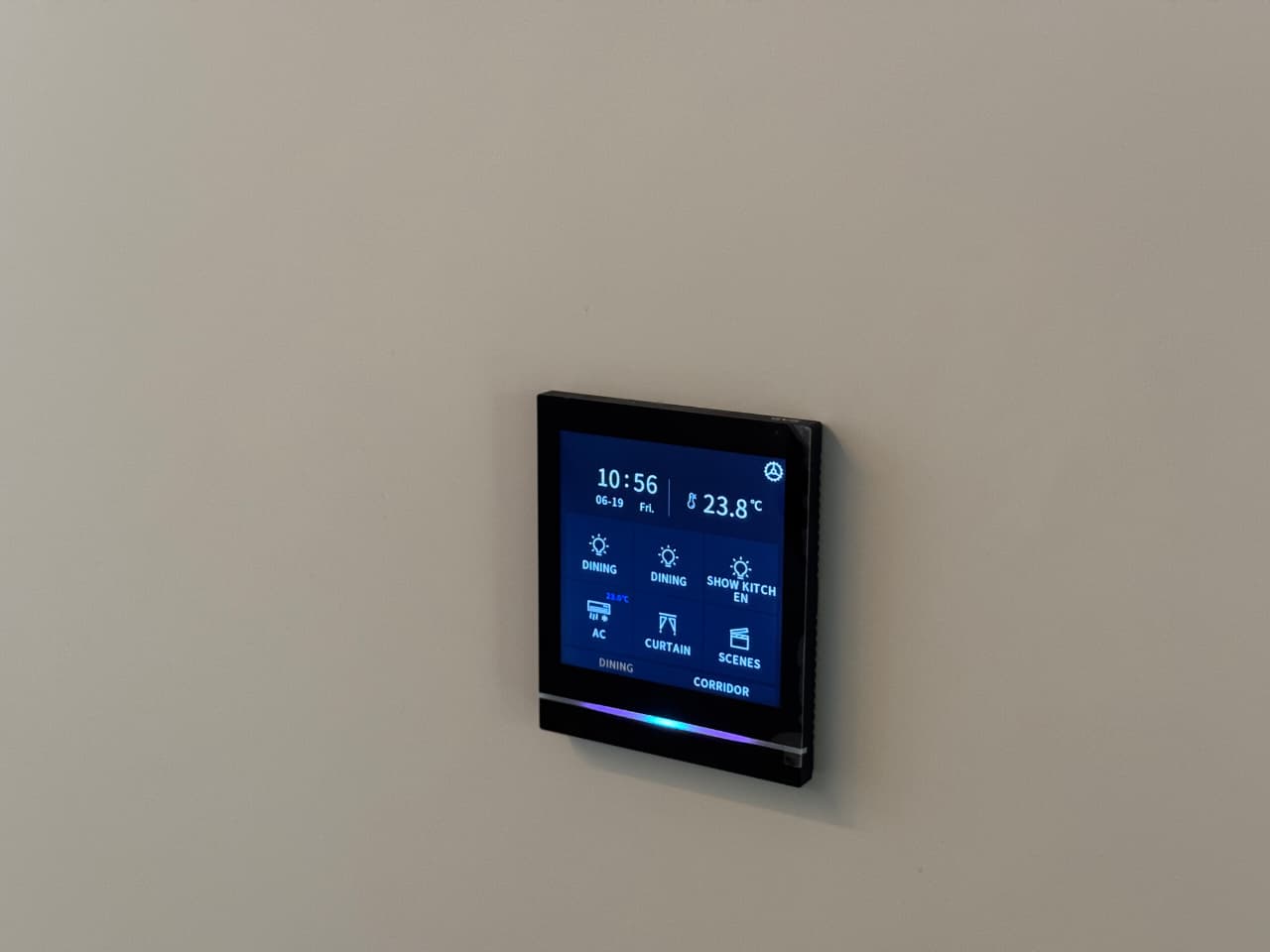

GVS KNX Smart Touch Panels
KNX DALI Gateways
Presence Sensors
Automation Controllers
KNX Actuators
CoolMaster HVAC Integration.

User Experience

One-touch scenes such as:

Movie Mode
Party Mode
Welcome Home
Good Night
Entertainment Mode

Enterprise-Grade Network Infrastructure

Reliable connectivity was essential for:

Streaming
Automation
CCTV
Smart devices
Future expansion

Network Deployment

24 UniFi U7 Pro WiFi 7 Access Points.
UniFi Dream Machine Special Edition.
UniFi Layer-3 Managed Switching.
Structured Cat6 backbone infrastructure.
42U enterprise equipment rack.

Outcomes

Full-villa WiFi coverage.
High device density support.
Reliable streaming and automation performance.

Security & Surveillance

The property was secured using:

CCTV Infrastructure

12 Hikvision 4MP IP cameras.
16-channel Hikvision NVR.
Managed PoE switching.
Remote monitoring capability.

Benefits

24/7 monitoring
Motion detection
Vehicle and human analytics
Remote mobile access

Results Achieved

Technical Outcomes

✓ Reference-grade cinema experience

✓ Fully integrated smart-home ecosystem

✓ Whole-home audio distribution

✓ Enterprise WiFi coverage

✓ Professional event-ready multipurpose hall

✓ Secure IP surveillance system

✓ Unified user control platform

✓ Future-ready infrastructure

Conclusion

The Emirates hills villa project demonstrates how advanced AV technologies, smart automation, premium acoustics, and luxury interior integration can work together to create a world-class residential entertainment experience. By combining high-end projection, distributed audio, KNX automation, enterprise networking, and professional-grade acoustics, MKB Bespoke Audio delivered a fully connected luxury lifestyle solution tailored to the client's vision and future requirements.
