The Details

DESCRIPTION

Powerful sound without the clutter. Designed for custom installations. Buy now for fast delivery!

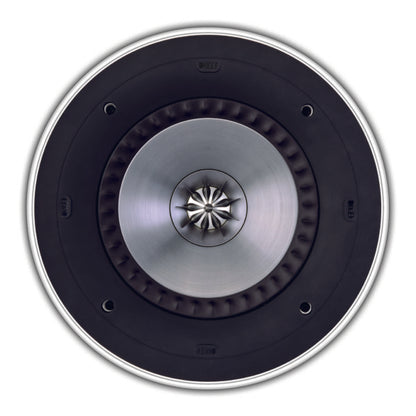

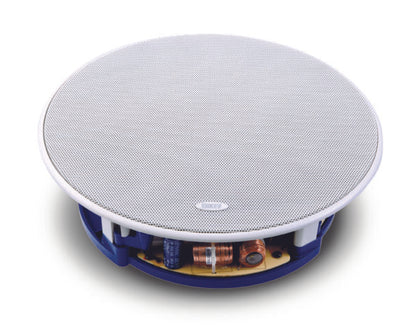

Classic & Elegant Speaker

  • Uni-Q “Sit- Anywhere” Technology
  • Aluminum Dome Tweeter With ‘Tangerine’ Waveguide

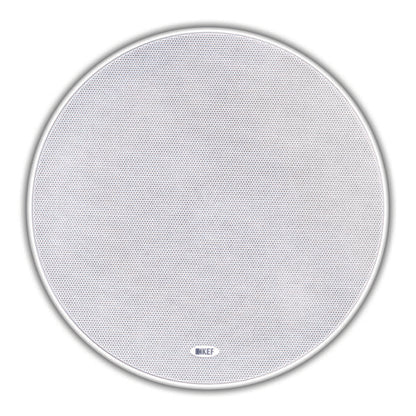

  • Paintable Ultra-Thin Bezel (UTB) And Magnetic Grille
  • Fast, Versatile Installation On Any Surface Via Dogleg
  • Gold Plated Spring-Loaded Terminals
  • Weather Resistant
  • IP64 Certified

Manufactured country : UK

SPECIFICATIONS
Nominal Impedance

4 Ohms

Sensitivity

90dB (2.83V/1m)

Frequency Response

33Hz - 28kHz (±6dB) open-backed

Crossover Frequencies

2.2kHz

Drive Units

LF: 200mm (8 in.)
HF: 38mm (1.5 in.) Uni-Q

Recommended Amplifier Power

10 - 190 W

Product External Dimensions (H x W x D)

290 x 132.6 mm (11.42 x 5.22 in.)

Cut-out Dimensions (H x W)

240 mm (9.45 in.)

Mounting Thickness


Ceiling Thickness (Maximum): 37 mm (1.46 in.
Ceiling Thickness (Minimum): 6 mm (0.24 in.)

Mounting Depth From Surface

126.5 mm (4.98 in.)

Optional Rough in Frame

RIF200R

Net Weight

3.6 kg (7.94 lbs)

Unit Measurement

Piece

Downloads


Manual
Individual Information Spec. Sheet
Architectural Speaker Brochure
Product Group Spec. Sheet
Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Selection And Setup Guide
Architectural Speaker Accessory Guide
Extreme Home Theatre Info Sheet
