EXPLORE FEATURES

DESCRIPTION

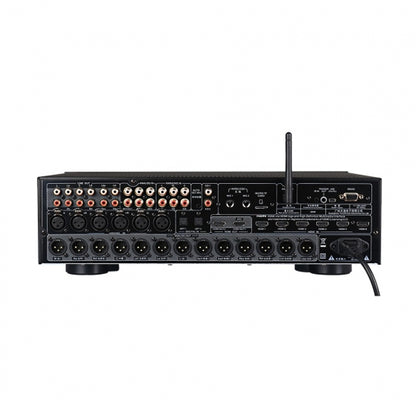

AT-3000 is an AV receiver integrated audio power amplifier which supports Dolby Atmos, Dolby TrueHD, DTS:X and their downward iterations. It also supports HDR and 4K. It also supports HDMI 6 in 2 out, eARC, Bluetooth, TF card, USB disk, OSD menu, RS232, App control, auto acoustic test room calibration, etc. It supports 240W/8Ωfor L/R/C channels and 120W/8Ωfor other eight channels. It’s a multi-functional integrated amplifier AVR for high-end home entertainment.As a top 10 audio brand in China, Tonewinner has 30+ years experience in designing and manufacturing acoustic products. As an original supplier, Tonewinner always warmly welcomes distributors, partners and customers around the world.
SPECIFICATIONS
Model

AT-300

SNR

≥98dB(A weight, direct mode)

Rated input impedance

20kΩ(analog input)

Frequency

10Hz-50kHz (+1/-3dB, analog direct)

Channel separation

>80dB (analog direct)

Power vlotage

~100V-~240V (50Hz-60Hz)

N.W.

4.4kg

Channel

9.3.4/ 7.3.6

THD

≤0.02% (1KHz,normal working)

Rated output impedance

1kΩ

Gain

≥14dB (analog direct)

Input level

≥2Vrms (analog direct)

Default volume range

The default volume range is 0-80. Actual gain mode: "-65-15" (-65 to + 15)

Dimension

431x100x326mm (W×H×D)
